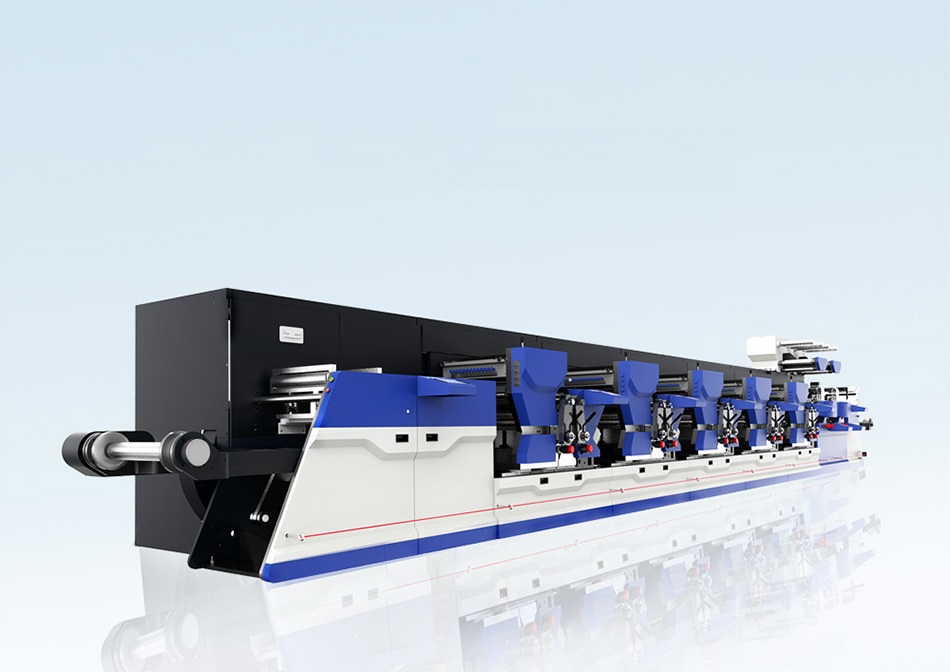

JD-XL330 model series composite trademark printing presses are suitable for printing adhesive, coated paper, cardboard and plastic film.
Product Presentation
JD-XL330 model series composite trademark printing presses are suitable for printing adhesive, coated paper, cardboard and plastic film. The machines adopt unit type modular combination, which can be used in 4-12 color printing. Perfect combination of offset and flexo printing according to user requirements. The offset printing unit of the machine adopts the design idea of a heavy single-sheet offset press, and is equipped with an automatic registration system and a pre-set system to ensure accurate registration at high speed (120 m/min) and low rate of spoiled products. The optional secondary registration printing can make the machine more widely used.They are ideal machines to print high-grade products, daily chemical products, wine labels, medicine labels, packaging boxes, adhesive labels and so on.
Characteristics
Modular printing, offset printing and flexo printing can be customized, personalized printing, perfect performance of the label process characteristics; At the same time, it can also achieve the printing process such as cold foil, glazing and laminating.
Large printing area is 320X539.8mm and maximum printing perimeter can be up to 539.8mm. The maximum speed can reach 120m/min. Whether it is a large quantity order or big label job, you can handle it easily.
It can print many kinds of printing materials, such as paper, plastic film, metal foil. The thickness is from 0.02mm (film) to 0.35mm (cardboard).
High degree of automation: pneumatic lifting paper roll, automatic web guide, slitting inspection, automatic adjustment of printing pressure, automatic calculation of plate length, automatic registration, static observation, ink adjustment curve automatic tracking speed, etc.
Automatic registration system, especially for more than one unit, registration system is better than others. Its registration adjustment precision is to 0.01mm. The registration can be in the right place within two printing circumference.
Preset registration function: to install the plate roller before printing, then press the start button, the plate roller will automatically look for the zero position for registration. Registration requirements can be achieved without manual adjustment. It improves efficiency, saves a lot of materials and labor costs.
Portable sleeve technology. The plate and blanket sleeve of magnesium aluminum alloy can change the printing format . The operation is simple and the maintenance cost is low.
Main Technical Specification
|
Model |
JD-XL330 |
||
|
Max. web width |
330mm |
Max. rewind dia. |
1000mm(270kgs) |
|
Max. printing width |
320mm |
Unwind/rewind dia. (Cold stamping) |
600mm(30kgs) |
|
Min. web width |
160mm(paper) |
||
|
Max. printing speed |
120m/min |
PS plate thickness |
0.3mm |
|
Printing colors |
4-12 |
Flexo plate thickness |
1.14mm |
|
Repeat length |
412.8mm-539.8mm (130T-170T) |
Blanket thickness |
1.95mm |
|
Max. material thk. |
0.04-0.30mm |
||
|
Max. unwind dia. |
1000mm(270kgs) |
Offset+Offset accuracy |
≤0.035mm |
|
Offset+Flexo accuracy |
≤0.07mm |
||
Its overall dimension and manufacturing process are subject to change without further notice.
