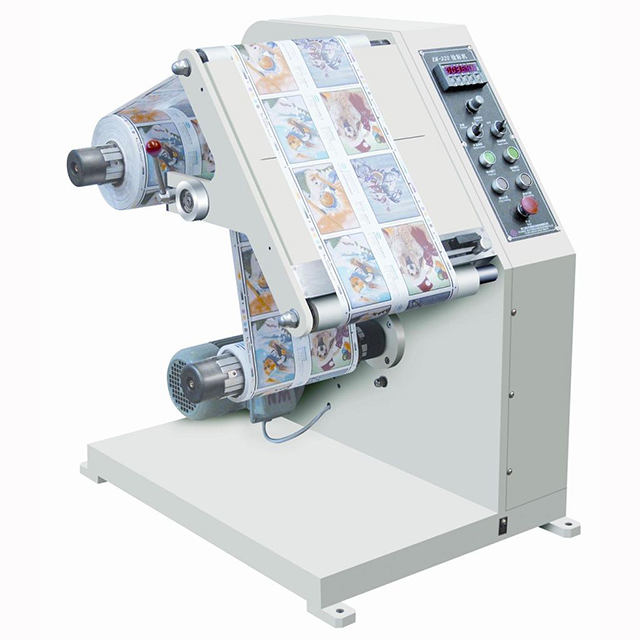

The machine is an accessorial machine of label printing, die cutting machine, which is used for inspecting the quality of printing and die cutting.
Characteristics
The machine is an accessorial machine of label printing, die cutting machine, which is used for inspecting the quality of printing and die cutting. It has automatic meter counting, piece counting system. The machine is stably running , easy operating with smart mechanical structure, high speed, efficient speed adjusting by frequency converting.
Main Technical Parameters
|
Model |
JB-320 |
JB-450 |
|
Inspecting speed |
80m/min |
80m/min |
|
Max. web width |
320mm |
450mm |
|
Max. unwinder diameter |
500mm |
500mm |
|
Power voltage |
220V±10% |
220V±10% |
|
Overall dimension |
900x700x960(mm) |
900x800x960(mm) |
|
Machine weight |
250KGS |
270KGS |
