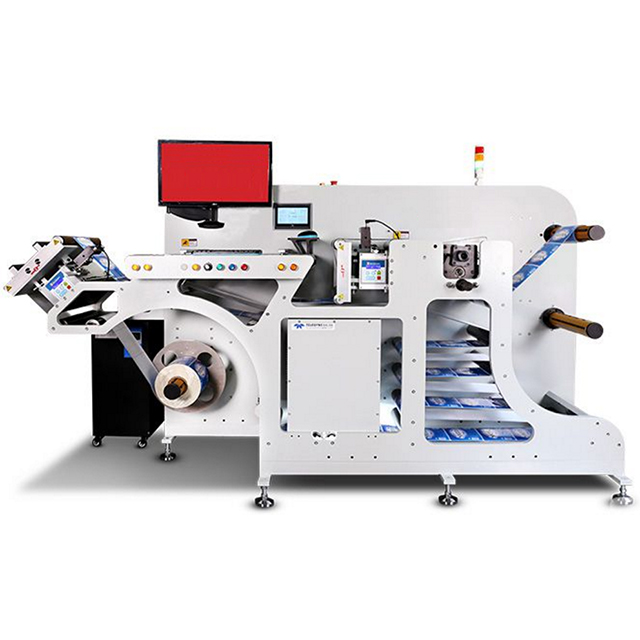

Main characteristics of equipment

It is applicable to some industries, like daily chemical, food, medicine, printing and packaging, cosmetics, anti-counterfeit detection, lithium battery, 3C electronics, etc.

Suitable for hot stamping, silver stamping, die-cutting deviation, color difference defect, bar code, OCR, QR code, etc.

Main characteristics of equipment

1. High detection accuracy:

The maximum detection accuracy can reach 0.02 mm

2. The software of AIMS V3.0 line scan system is easy to operate:

Quickly establish product quality inspection standard template, which can be used as reference label printed matter. The same batch product quality standard template can be directly invoked and reused, and the time of repeated modeling can be omitted.

3. The detection function is complete:

In addition to detecting conventional printing defects, it also has the function of detecting defects such as bubbles, scratches, glue spills, etc.

4. High efficiency of quality inspection:

Single testing equipment can replace the work efficiency of at least five quality inspection workers, effectively saving labor costs.

5. Full Servo Design:

The whole machine is controlled by five servos independently. It has the characteristics of high accuracy, longer service life, maintenance-free and fast troubleshooting.

6. Three-dimensional stereoscopic LED light source system:

Patented three-dimensional LED light source system makes defect detection more applicable.

7. Quality Inspection, High Separation, Two-in-One, Multi-purpose Machine:

In addition to the function of product inspection, the equipment also has the function of high-speed stripping, with the speed of stripping up to 300 meters per minute.

Optional

1. Single/double sided inkjet table

2. Razor blade slitting device

3. Dust removal device

4. Electrostatic Removal Device

5. Defect marking device

6. Digital display ruler

7. Turret Rewinding Device

Main Technical Parameters
