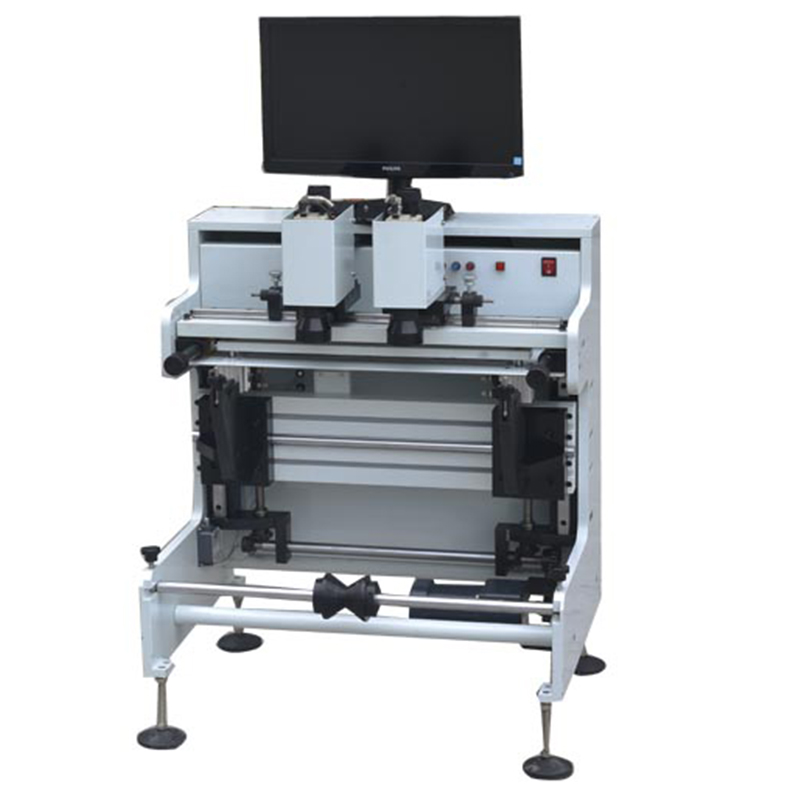

Adopting precision screw mechanism with adjustable up and down, Japan advanced zoom lens, Taiwan CCD camera, PHILIPS high definition LCD.
Characteristics
Adopting precision screw mechanism with adjustable up and down, Japan advanced zoom lens, Taiwan CCD camera, PHILIPS high definition LCD.
Precision linear guide rail, the motor drives the ball screw to position left and right, and the cylinder locks the plate after aligning the plate to ensure the accuracy of the plate.
The camera can be adjusted in all directions, the parallelism is adjustable, the platen precision is high, and the color registration is accurate.
Sleeve type plate roll can be used.
Quickly paste, easy to operate, and greatly improve work efficiency.
Suitable for flexo plate, resin plate and other graphic printing.
Main Technical Parameters
|
Model |
Max. Cylinder length |
Max. repeat length |
Measurement (L x W x H) |
Weight |
|
ZX-320 |
320mm |
800mm |
920X600X1650(mm) |
160kgs |
|
ZX-650 |
650mm |
800mm |
1050X600X1650(mm) |
200kgs |
|
ZX-1000 |
1000mm |
1200mm |
1500X600X1650(mm) |
280kgs |
|
ZX-1200 |
1200mm |
1200mm |
1700X600X1650(mm) |
320kgs |
|
ZX-1300 |
1300mm |
1200mm |
1800X700X1650(mm) |
340kgs |
|
ZX-1500 |
1500mm |
1200mm |
2100X700X1650(mm) |
400kgs |
|
ZX-1800 |
1800mm |
2400mm |
2400X700X1650(mm) |
460kgs |
Accept special orders.
