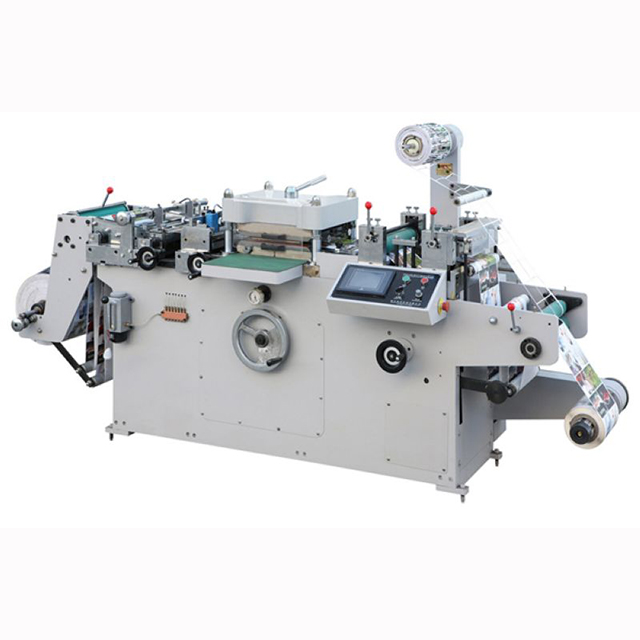

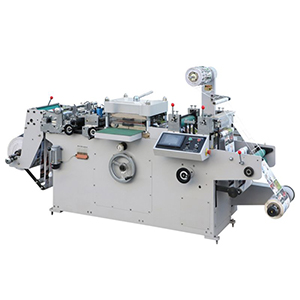

This is a high precision flat-bed die cutter. Material feeding & cutting are controlled by servo motor. Lateral sides are controlled by 2pcs of sensor and lineal side is controlled by one of sensor.
Characteristics
This is a high precision flat-bed die cutter. Material feeding & cutting are controlled by servo motor. Lateral sides are controlled by 2pcs of sensor and lineal side is controlled by one of sensor. Laminating, diecutting, waste removal, sheeting or rewinding can be completed in one pass. It is suitable for cutting pressure sensitive label and holographic anti-counterfeiting label. It is a best, efficient partner for adhesive label printing machine and hologram diecutter and is also applicable for label house. electronic parts die cutting and adhesive tape sectors.
Main Technical Parameters
|
Model |
MQ-320 |
MQ-350 |
MQ-420 |
MQ-520 |
|
Die cutting speed |
300t/min |
300 t/min |
220 t/min |
180 t/min |
|
Max. unwinder Dia. |
500mm |
500mm |
500mm |
500mm |
|
Max. web width |
320mm |
350mm |
420mm |
520mm |
|
Max. die cutting width |
300mm |
350mm |
400mm |
500mm |
|
Max. die cutting length |
290mm |
345mm |
400mm |
400mm |
|
Power |
220V1P |
380V 3P |
380V 3P |
380V 3P |
|
Overall dimension |
2800x1100x1600(mm) |
2800x1150x1600(mm) |
3000x1200x1600(mm) |
3000x1300x1600(mm) |
|
Machine weight |
1800KGS |
1900KGS |
2000KGS |
1300KGS |
Accept special orders.
