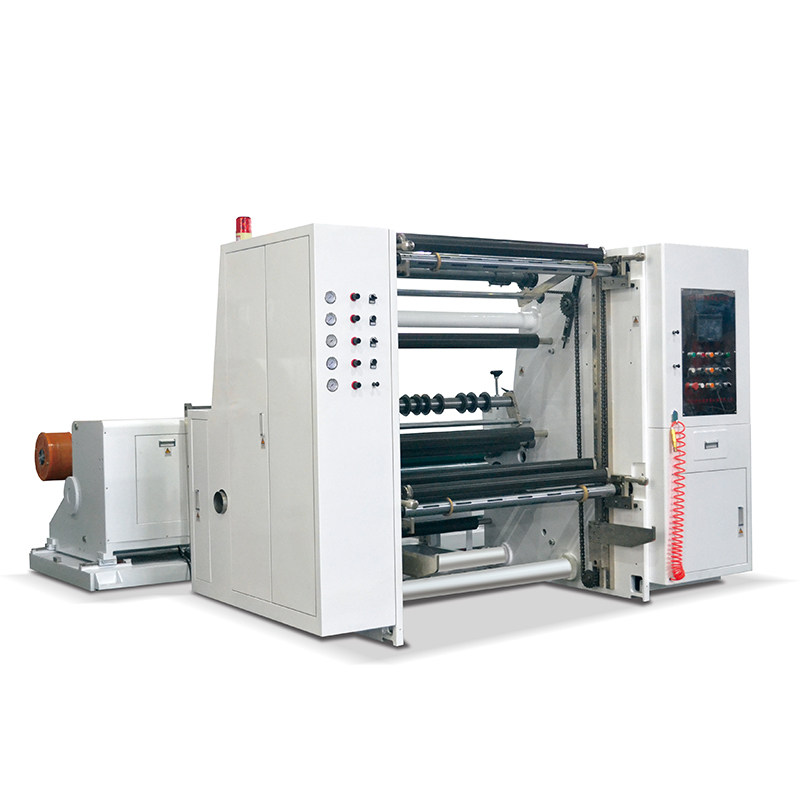

This machine is used for slitting and rewinding various large rolling materials such as paper, (120g/m2~300g/m2)Kraft paper, coated paper, aluminum foil, PVC, plastic material, etc.
Performance and Characteristics
This machine is used for slitting and rewinding various large rolling materials such as paper, (120g/m2~300g/m2)Kraft paper, coated paper, aluminum foil, PVC, plastic material, etc.
This machine adopts PLC touch screen control. Three motor vector control and automatic taper tension, central surface reeling. Frequency converter timing for main motor, keeping speed up and stable operation.
It has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.
It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit. (or liquid press style subtense system).
Equipped with automatic waste film blowing device.
Automatic material loading by pneumatic, matched with inflatable shaft ( can use automatic loading by pneumatic as optional ).
|
Model |
WZFQ-1100A |
WZFQ-1300A |
WZFQ-1600A |
|
Max. width |
1100mm |
1300mm |
1600mm |
|
Max. unwind Dia. |
Φ1400mm |
Φ1400mm |
Φ1400mm |
|
Min. slitting width |
50mm |
50mm |
50mm |
|
Max. rewind Dia. |
Φ1000mm |
Φ1000mm |
Φ1000mm |
|
Max. Speed |
350m/min |
350m/min |
350m/min |
|
Power |
22kw |
24kw |
28kw |
|
Power supply |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
Weight |
7600kgs |
7800kgs |
8000kgs |
|
Overal dimension |
3000x2000x2200(mm) |
3000x2400x2200(mm) |
3000x2700x2200(mm) |
