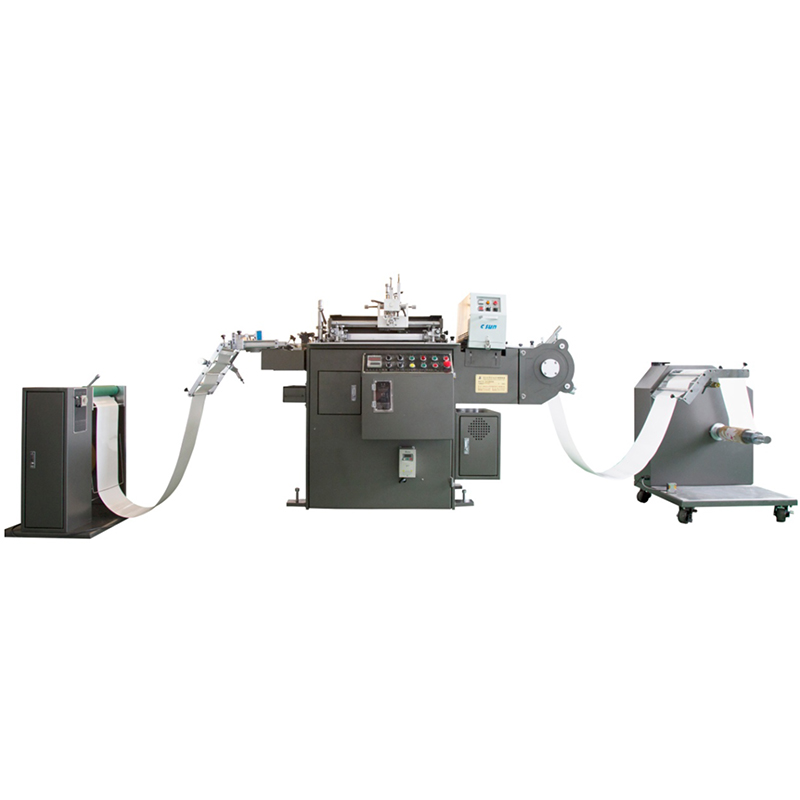

The machine is used for printing reel material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc.
Characteristics
The machine is used for printing reel material, such as PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material towing is controlled by servo motor,the main machine driving part adopts pneumatic device, and the web-guiding is tracked by photocells. The machine has the characteristics of high accurate color register, steady materialfeeding,automatic counter and compact structure, etc.
Main Technical Specification
Model |
HH-320 |
HH-450 |
Printing speed |
0-4200pcs/h |
0-4200pcs/h |
Max. web width |
320mm |
450mm |
Screen frame size |
450mmX500mm |
600mmX600mm |
Max. printing width |
300mm |
420mm |
Max. printing length |
300mm |
400mm |
Max. unwinder diameter |
600mm |
600mm |
Precision of printing |
0.1mm |
0.1mm |
Power supply |
220V 1P 50HZ |
220V 1P 50HZ |
Its overall dimension and manufacturing process are subject to change without further notice.
