特点:

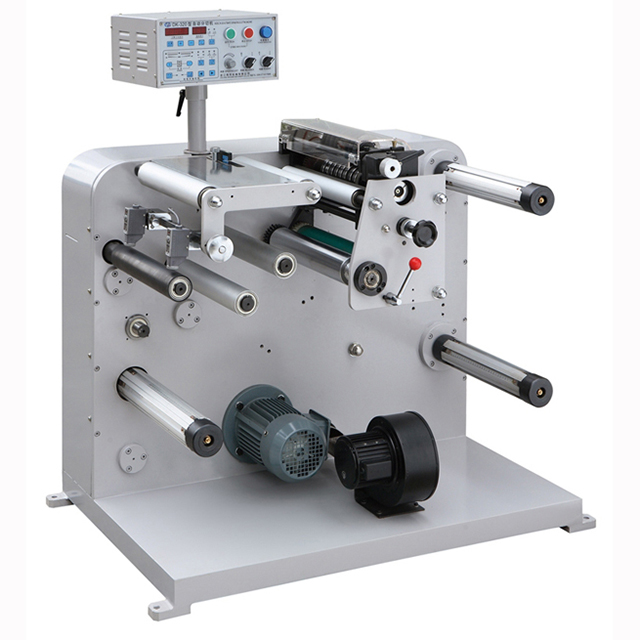

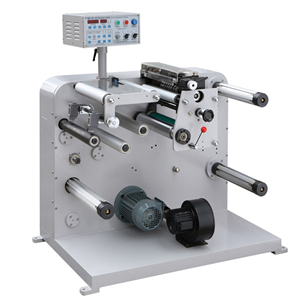

自动分切机是全自动标签印刷机和卷对卷模切机的配套设备。适用于将纸张切成窄条状。它有总长度计数器。标签计数器,预定计数器,调速。报警, 气动coreholder,张力控制。边缘指南上放松烦躁由光电眼睛。它是一个快速运行,准确的分切。操作方便,结构紧凑,设备稳定。
主要技术参数:
Model |
FQ-320 |
FQ-450 |
FQ-520 |
Slitting speed |
120m/min |
120m/min |
120m/min |
Max. web width |
320mm |
450mm |
520mm |
Max. unwinder diameter |
500mm |
500mm |
500mm |
Max. rewinder diameter |
450mm |
450mm |
450mm |
Min. slitting width |
15mm(Round knife) 8mm(Razor knife) |
15mm(Round knife) 8mm(Razor knife) |
15mm(Round knife) 8mm(Razor knife) |
Voltage |
220V±10% |
220V±10% |
220V±10% |
Overall dimension |
1300x1200x1500(mm) |
1300x1300x1500(mm) |
1300x1400x1500(mm) |
Machine weight |
480KGS |
550KGS |
630KGS |
Accept special orders.
