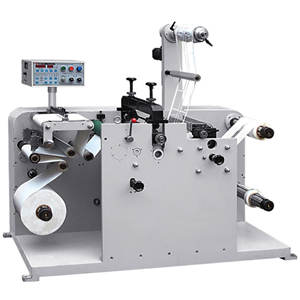

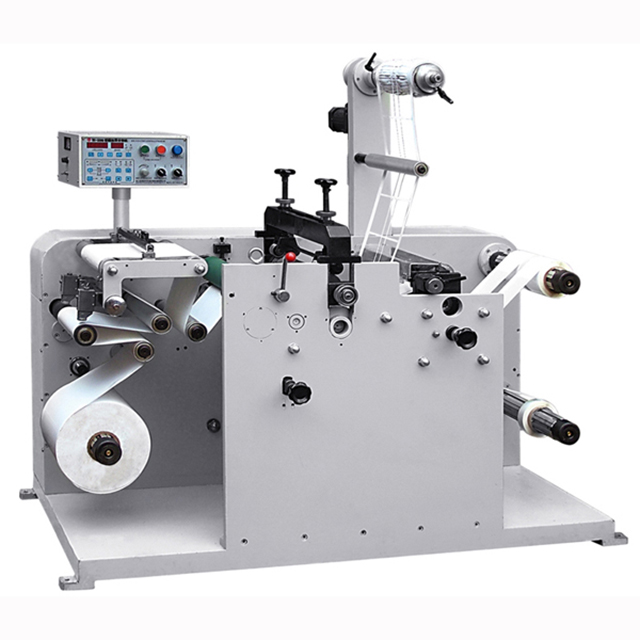

Slitting machine with rotary die-cutting function is a new product. It equipped with high accurate rotary die-cutting system in slitting machine.
Characteristics
Slitting machine with rotary die-cutting function is a new product. It equipped with high accurate rotary die-cutting system in slitting machine. This machine is suitable for blank adhesive labels.Die-cutting&slitting can be finished in one process. It has the function ofautomatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
Main Technical Parameters
Model |
FQ-320R |
FQ-450R |
Slitting speed |
120m/min |
120m/min |
Die cutting speed |
100m/min |
100m/min |
Die cutting repeat length |
177mm-476mm |
177mm-476mm |
Max. web width |
320mm |
450mm |
Max. unwinder diameter |
500mm |
500mm |
450mm |
450mm |
|
Min. slitting width |
15mm(Round knife) 8mm(Razor knife) |
15mm(Round knife) 8mm(Razor knife) |
Voltage |
220V±10% |
220V±10% |
Overall dimension |
1700x1300x1800(mm) |
1700x1400x1800(mm) |
Machine weight |
1000KGS |
1100KGS |
Accept special orders.
