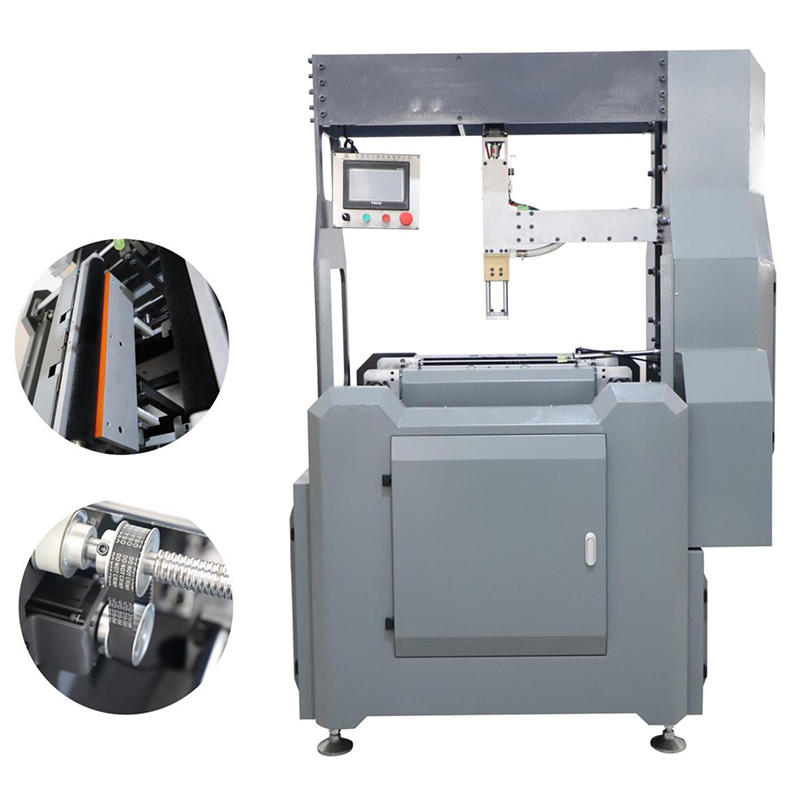

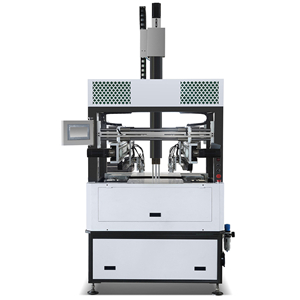

Box making machine with automatic mold adjusting is the newest machine , the advantage is only need to input the box outside dimension on the touch screen ,the bubble pressing plate and angle part will go on position by automatically,it also has the function of memory and storage ,saving the time of mold change .

Features :

1.Main transmission adopts double servo drive,smooth operation,high stability,adapt to a variety of paper with different thickness,size and structure.Fold range between 10- 90mm.

2.Four side bubble pressing part is adopts the upper and lower dislocation,do forwards and backwards bubble remove first,then go down for pressing the left and right .

3.The angle part is connected to the bubble pressing plate,it will be adjust before deliver,it’s needn’t to re-set when you make different size of boxes

4.Multi-function box making system can make different shape of boxes.

5.Ejection device adopts cylinder synchronous running mode,smooth operate,box take off system adopts automatic air change ejection,simple structure.

Technical Parameters:
Max box size：410x410x100mm(L*W*H)
Min box size：50*50*10mm
Edge folding depth: 10-90mm
Working speed: 0--25P/min
Voltage: 220V 50hz
Power:2.5kw：2kw
Air supply：10L/min 0.8mpa
Model：adjust model automatically
